TOKO AWS A5.1 E6013 Welding Electrode

TOKO AWS A5.1 E6013 Welding Rods are versatile, general-purpose electrodes designed for welding low-carbon steels and mild steels | AWS A5.1 E6013 is a widely used shielded metal arc welding (SMAW) electrode known for its versatility, ease of use, and suitability for general-purpose welding. Below is a detailed breakdown of its characteristics and applications:

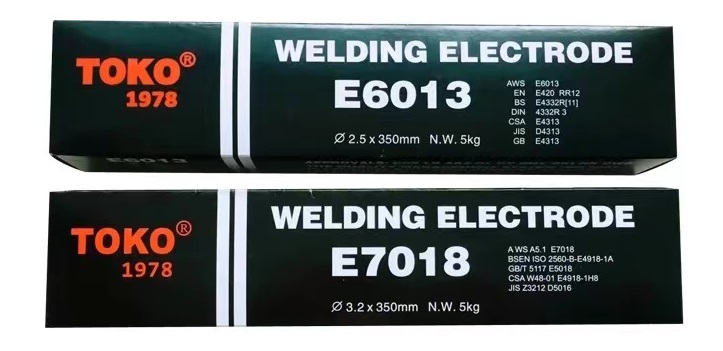

TOKO E6013, E7018 Welding Rods

1. Classification & Specification

  • AWS A5.1 Compliance: Meets the American Welding Society (AWS) standard for carbon steel electrodes.
    • E: Electrode.
    • 60: Minimum tensile strength of 60,000 psi (414 MPa).
    • 1: All-position welding capability (flat, horizontal, vertical, overhead).
    • 3: Rutile-based coating with added potassium for stable AC/DC operation.

2. Coating Type

  • Rutile (Titanium Dioxide) Coating:
    • Contains titanium dioxide (rutile), silica, and potassium compounds.
    • Provides smooth arc stability, easy arc ignition, and minimal spatter.
    • Forms a thin, easy-to-remove slag, resulting in clean, aesthetically pleasing welds.

3. Key Advantages

✅ Versatility: Works on rusty, painted, or poorly prepared surfaces (though clean surfaces are recommended for best results).
✅ Aesthetic Welds: Produces smooth, visually appealing beads with minimal cleanup.
✅ Cost-Effective: Affordable and widely available for light-to-medium welding tasks.

4. Common Applications

✅ Fabrication of mild steel structures
✅ Repair and maintenance work (e.g., automotive, farm equipment)
✅ Sheet metal welding (HVAC, ductwork, automotive panels)
✅ Light construction, pipelines, and shipbuilding (non-critical joints)

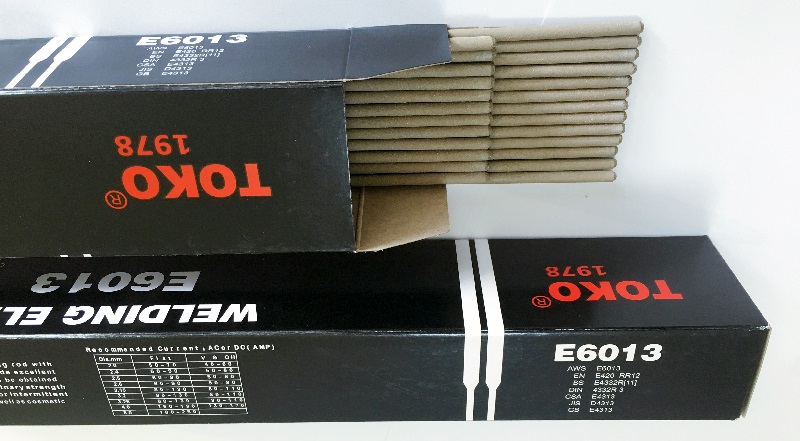

TOKO E6013 WELDING RODS

5. Technical Specifications

Property Value
Diameter Range 2.5mm–5.0mm
Current Type AC/DC+ (recommended)
Position All except vertical-down
Flux Composition rutile powder
Storage Store at ≤50°C, <50% RH

6. Performance Benefits

✅ Smooth Arc Stability: Reduced spatter and easy slag removal.
✅ Deep Penetration: Ideal for thick materials and root passes.
✅ Crack Resistance: Low hydrogen levels (<5ml/100g) prevent HIC.
✅ Versatile Compatibility: Works on carbon steel, high-strength steel, and some low-alloy steels.

7. Welding Parameters

Diameter (mm) Current Range (DC+) Voltage (V)
3.2 90–130A 22–26
4.0 120–180A 24–28
5.0 180–250A 26–30

8. Why Choose TOKO E6013?

✅E6013 their rutile coating ensures a stable arc, minimal spatter, and easy slag removal, perfect for smooth, aesthetic welds. Store at 60°F-100°F, low humidity, and bake at 275°F if moist.
