Welding
Consumables
TOKO Welding
LLC,
manufacturing all kinds of Welding Consumables such as: Welding rods, Flux Cored Welding Wire, Stainless Steel Welding
Rods/Wire, NiCrMo-3 Ally Welding Wire, Cr25Ni35Nb Alloy Welding wire, TIG Welding wire, MIG
Welding wire, Welding Flux
etc; such as: AWS A5.1 E6010, AWS A5.1
E6011, AWS A5.1 E6013, AWS A5.1
E7016,
AWS A5.1 E7018, AWS E308L-16,AWS
E309L-16, AWS E316L-16, AWS A5.20
E71T-1C, AWS A5.20 E71T-11, AWS A5.20 E71T-GS, AWS A5.9
25-35Nb(Cr25Ni35Nb), AWS A5.14
CrNiMo-3, AWS A5.9 E2209, AWS A5.10 ER4043, AWS
A5.10 ER5356, AWS A5.17 EM12 (H08MnA), Welding Flux: SJ101, SJ301, SJ501 etc, all products are designed for energy conservation & environment protection, separately approved by China Classification Society(CCS), Lloyd’s Register of Shipping(LR), American Bureau of Shipping(ABS), Bureau Veritas(BV), Germanischer Lloyd(GL), Det Norske Veritas(DNV), Nippon Kaiji Kyokai(NK), Korea Register of Shipping(KR), Pt.Biro Klasifikasi Indonesia(BKI), Canadian Welding Bureau(CWB) as well as Lloyd’s Register Quality Assurance (LRQA) etc.
TOKO

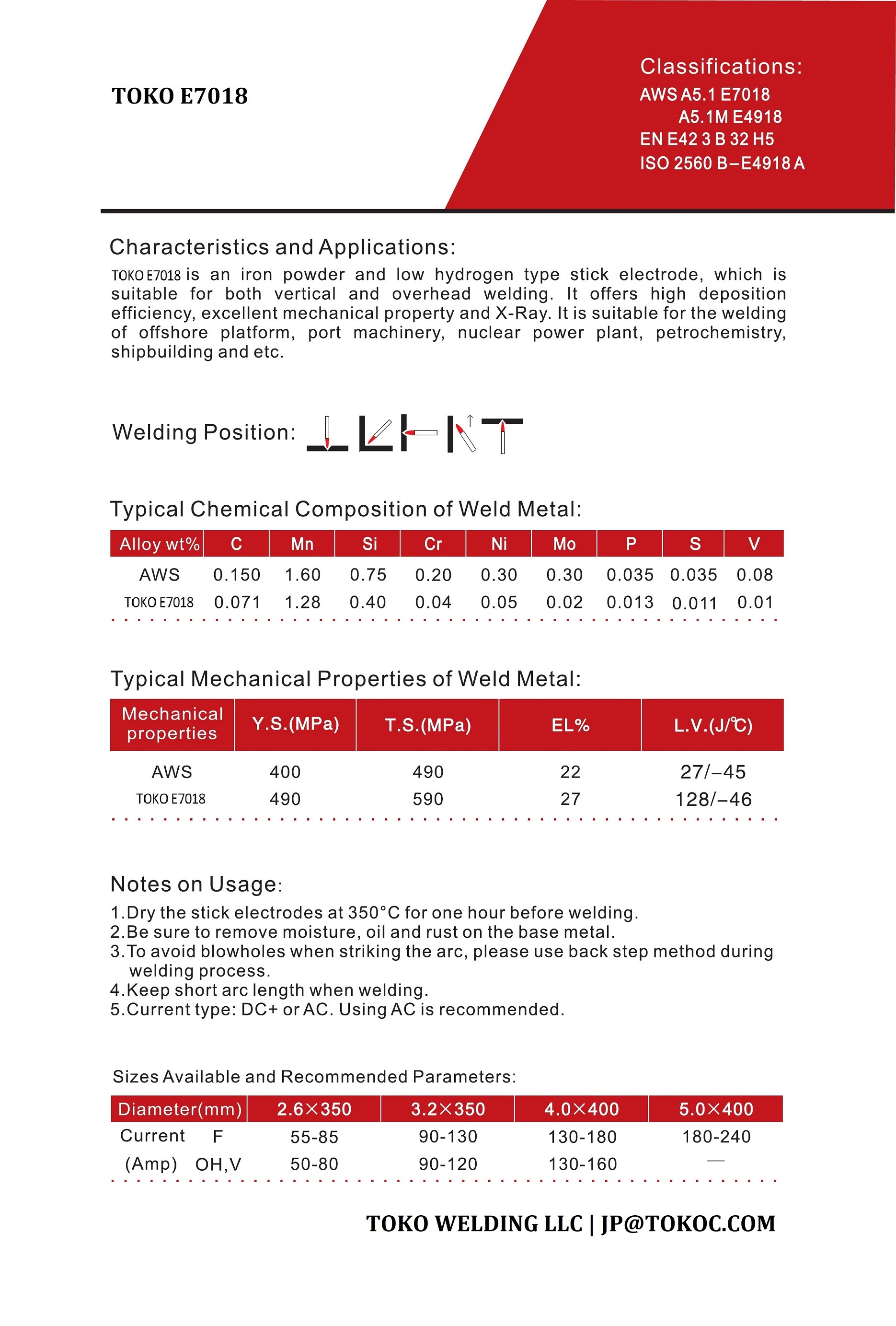

AWS A5.1 E7018 welding rods is the most popular low-hydrogen covered electrode
type in application today. It features certain characteristics that separate it from other
classes. This class of covered electrode is an ideal choice for all-position
welding, with the exception of downhill welds. They offer smooth, quiet arc
characteristics with low spatter levels and easy slag removal, making E7018 a
desirable electrode to use by welders of all skill levels. They provide weld
deposits with medium penetration levels, ensuring good fusion to the base metal.
Another benefit, made possible with the addition of iron powder in the coating,
is a relatively high deposition rate.
The robust deposition rate can
make covered electrode welding cost effective for a wider range of applications.
Finally, under most conditions, these low-hydrogen electrodes provide good arc
starting and restriking capabilities. These start and restrike characteristics
minimize starting and striking porosity.
Flux Cored Wire
Flux-cored ARC welding (FCAW or FCA) is a semi-automatic or
automatic arc welding process. FCAW requires a continuously-fed
consumable tubular electrode containing a flux and a
constant-voltage or, less commonly, a constant-current welding
power supply. An externally supplied shielding gas is sometimes
used, but often the flux itself is relied upon to generate the
necessary protection from the atmosphere, producing both gaseous
protection and liquid slag protecting the weld. The process is
widely used in construction because of its high welding speed
and portability.
FCAW was first
developed in the early 1950s as an alternative to shielded metal
arc welding (SMAW). The advantage of FCAW over SMAW is that the
use of the stick electrodes used in SMAW is unnecessary. This
helped FCAW to overcome many of the restrictions associated with
SMAW.
TOKO AWS A5.20
E71T-1C is a most popular flux cored wire designed for single or
multi pass welding having a smooth arc transfer, low spatter,
flat to slightly convex bead contour, with a high deposition
rate and easily removal slag. This all-position wire has
excellent feeding and low fume generation using 100% CO2 making
it a good choice for mild steel and higher strengths steels.
Argon - CO2 gases may be used if tested with application.
Flux-Cored Wire Electrodes
There are two types of
flux-cored wire electrodes: gas-shielded and self-shielded. As its name
implies, the gas-shielded type of flux-cored wire requires an external shielding
gas. The self-shielded variety does not.
The flux coating on gas shielded
flux-cored wires solidifies faster than the molten weld material. Consequently,
a sort of shelf is created which holds the molten pool when welding overhead or
vertically up. Gas-shielded flux wires work well when welding thicker metals.
They also work well for welding out-of-position applications. Slag removal is
easy with this type of wire.
Self-shielding flux-cored wires
do not require an external shielding gas. With this type of electrode, the weld
pool is protected as gas is generated when the flux from the wire is burned.
Because the self-shielding wire produces its own protective shield and doesn’t
require an external gas tank, it is more easily carried about.
Submerge Welding Flux
TOKO Submerged ARC welding (SAW) is a common arc welding process. The process requires a continuously fed consumable solid or tubular (metal cored) electrode. The molten weld and the arc zone are protected from atmospheric contamination by being "submerged" under a blanket of granular fusible flux consisting of lime, silica, manganese oxide, calcium fluoride, and other compounds. When molten, the flux becomes conductive, and provides a current path between the electrode and the work. This thick layer of flux completely covers the molten metal thus preventing spatter and sparks as well as suppressing the intense ultraviolet radiation and fumes that are a part of the shielded metal arc welding (SMAW) process.
Disadvantages of Flux-Cored Wire
There are concerns with any type
of welding method. Regardless of the process and type of electrode used, there
is the possibility of creating an incomplete fusion between the base metals.
Slag inclusion or cracks in the welds may also result.
Additional problems that may
arise when using flux-cored electrode wires include:
- A melted contact tip may
occur if the electrode contacts the base metal and fuses the two together.
- If gases do not escape the
welded area before the metal hardens, the weld may develop holes and become
porous.
Solid Wire Electrodes
Solid wire electrodes are used
in Metal Inert Gas Welding. Such electrodes require a shielding gas, which is
delivered from a pressurized gas bottle. The shielding gas protects the molten
weld pool from atmospheric contaminants.
Solid wire electrodes are often
made of mild steel which is plated with copper to prevent oxidation and to aid
in electrical conductivity. The copper plating also helps to increase the life
of the welding contact tip.
Solid wires are the best choice
when working on thin materials, such as sheet metal. They should produce nice,
clean welds.
Solid wire electrodes do not
work well in wind. Exposing the shielding gas to the wind can compromise the
integrity of the weld.
Which Wire is the Best Choice?
When comparing the flux-cored
wires to the solid wires, it would be wise to note that the best choice is
dependent upon the welding job and location. Both types of wires can produce
sound welds with good weld bead appearances, when done correctly.
For thicker metals and outdoor
jobs, the flux-cored wire electrodes work best. For thinner metals and jobs
performed out of the wind, solid wire electrodes can work quite well. Solid wire electrodes used in
MIG welding are not as portable as flux-cored wires. This is due to the
necessity of a shielding gas in MIGW. Both solid wire electrodes and
flux-cored wire electrodes are relatively easy to use. However, flux-cored wire
electrodes are more costly.
Typical Welding Rods Data Sheets
AWS No. |
Products
Description |
Data |
A5.1 E6010 |
Root run pipeline welding on DC+ only |
Download |
A5.1 E6011 |
Root run pipeline welding AC or DC+ |
Download |
A5.1 E6013 |
Versatile general purpose electrode |
Download |
A5.1 E7016 |
Low hydrogen rods for welding structural steels and
fabriciations. |
Download |
A5.1 E7018 |
Low hydrogen-iron powder rods with optimum weldability for
workshop and fabricational work |
Download |
A5.4
E308L-16 |
Various application involving ASTM 304, 304L, 304NL, 301,
302, 303 Austenitic Steels. |
Download |
|
A5.4 E309L-16 |
Transition Welding between Stainless and Ferritic Steels. |
Download |
A5.4 E312-16 |
Weld high carbon steels & dissimilar metal combination. |
Download |
A5.4 E316L-16 |
For low-carbon austenic stainless steels containing a
norminal 19Cr-12Ni-2.5Mo |
Download |
A5.9 25-35Nb |
Joining and cladding high heat
resistant CrNi-steels of the same kind and Cast steels in a
low sulphurous
environment. |
Download |
A5.14 NiCro625 |
NiCro 625 is developed for
welding and cladding nickel-based alloys such as alloy
625... |
Download |
A5.4 E347-16 |
For austenitic stainless steel containing a norminal 19Cr
and 10Ni |
Download |
A5.9 ER2209 |
Used for pipe work and general fabrication in the offshore
oil and gas and chemical process industries. |
Download |
|
A5.22 ER2209 |
Flux cored
welding wire for Duplex stainless steel
e.g. UNS S31803 (alloy 2205) |
Download |
A5.9 ER308LSI |
ER308LSi
produces exceptionally smooth welds for applications that
require a good cosmetic appearance, welding grade 304, 308
etc. |
Download |
A5.22 ER309L |
For low-carbon austenic stainless steels containing a
norminal 23Cr-12Ni |
Download |
A5.9 ER316L |
For low-carbon austenic stainless steels containing a
norminal 19Cr-12Ni-2.5Mo |
Download |
A5.18 ER70S-6 |
Co2 Solid welding wire |
Download |
A5.10 ER5356 |
Aluminum
welding wire for higher strength |
Download |
A5.10 E4043 |
For non heat-treatable aluminium alloys containing up to 5%
Silicon (AlSi5) |
Download |
A5.20 E71T-1C |
Flux cored Welding Wire AWS E71T-1c |
Download |
|
